Rack Protectors: Types, functions, and how they reduce accidents in warehouses

Guest blog by MHI member RackUSA

A rack damaged by a forklift impact is more than just a cosmetic issue. A bent column compromises the load-bearing capacity of the entire row, forces pallets to be unloaded, halts operations, and can lead to collapse if not addressed in time. Rack protectors are designed to prevent these costs, and in high-traffic warehouses, they are the investment that pays for itself the fastest. A rack damaged by a forklift impact is more than just an aesthetic issue. A bent column compromises the load-bearing capacity of the entire row, forces pallets to be unloaded, halts operations, and can lead to collapse if not addressed promptly. Protectors are designed to prevent these costs, and in warehouses with heavy traffic, they are the investment that pays for itself the fastest.

Why a Rack Needs Protectors

Rack columns and frames are designed to withstand vertical loads, not side impacts. A 3 mph impact with a loaded forklift can generate forces that dent the sheet metal or misalign the frame enough to reduce its rated load capacity. Over time, repeated impacts in high-traffic areas accumulate: what started as a cosmetic mark ends up becoming a structural failure point. The problem is concentrated in predictable areas: row ends, narrow aisles, intersections, loading and unloading areas, and the first 18 in. of each upright. That’s where protectors come in. Their function is to absorb, distribute, or deflect the energy of the impact before it reaches the structure, and they are part of any serious warehouse safety program.

Types of Rack Protectors

Each type covers a different risk zone. Mixing them according to the warehouse layout is usually more cost-effective than relying on a single model.

Column Protector or Post Protector

The most common and cost-effective option. It is a device that is placed around the lower section of the vertical post, typically 18 to 22 in. from the ground, which is where forklift forks and the base of the forklift strike the post. Some are bolted to the column, while others are anchored to the floor and surround the post without touching it, allowing the protector to absorb the impact without transferring it to the structure. If the warehouse has standard forklift traffic, this protector covers most of the impact risk under normal operating conditions.

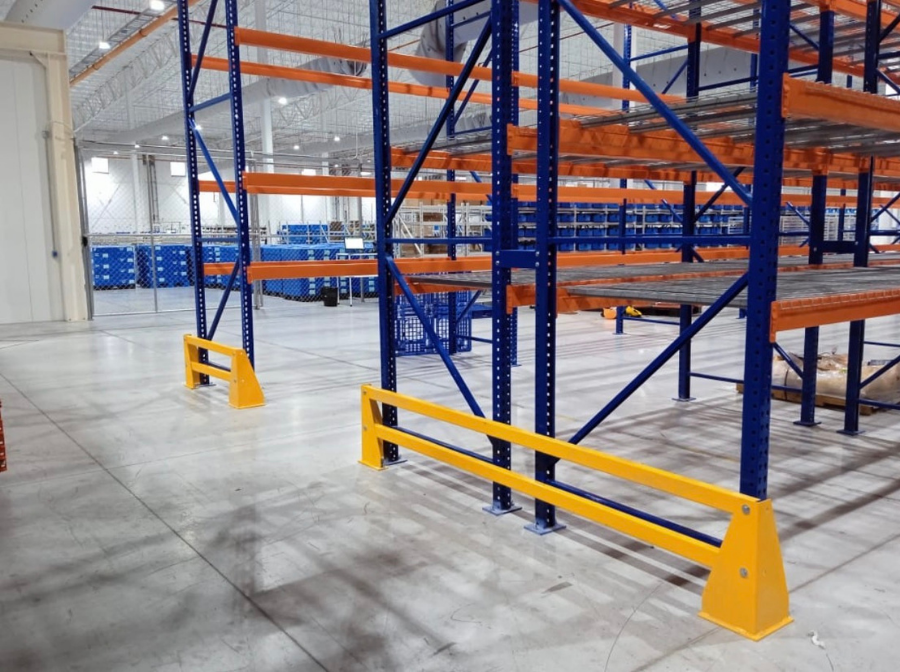

Battery or End-of-Row Protector

It is installed at the end of each row, where the rack ends and the aisle begins. This is the most exposed area of the system because any vehicle taking a poorly calculated turn will strike there first. It is typically a more robust barrier than the post protector, anchored to the floor, capable of withstanding direct impacts without shifting.

Corner Protector

Covers the points where two rows intersect or where the rack changes direction. It is smaller than a battery protector but equally useful when aisles are narrow and the forklift’s turning radius leaves no room for error.

Perimeter Barriers and Guardrails

For mixed-traffic zones, where personnel on foot circulate alongside forklifts. The barrier does not protect the column directly; it protects people and inventory located beyond the rack, common in industrial pedestrian aisles, manual picking areas, and office zones within the warehouse.

Safety Back Panels

They serve a different function but are part of the same system. They do not absorb impacts, but they prevent goods falling from a higher level from reaching the aisle or personnel. They are recommended in warehouses with pedestrian traffic beneath the racks or when small products are stored without lateral containment.

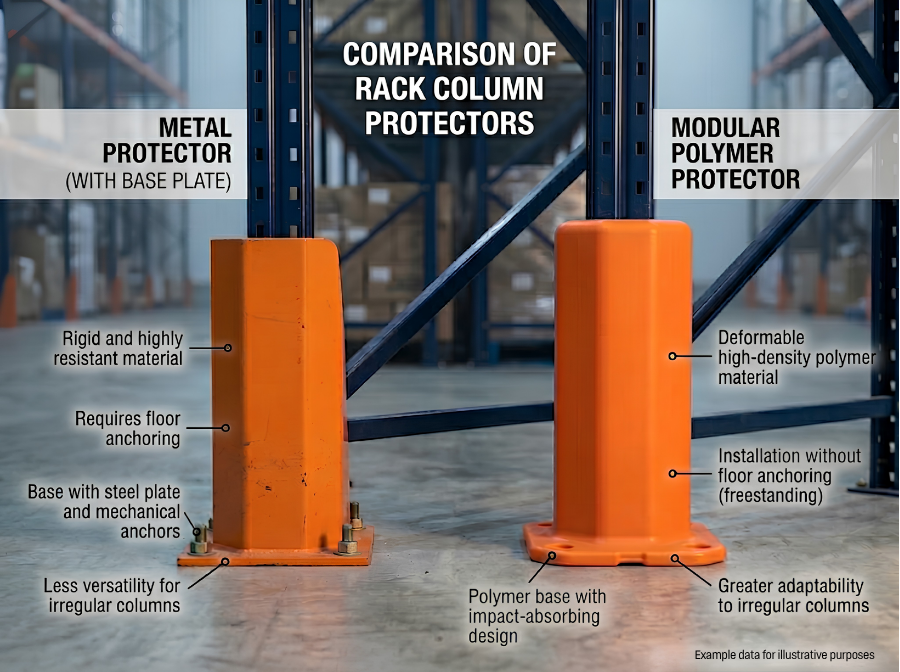

Materials: Structural Steel vs. High-Density Polyethylene

The two dominant materials address the problem in different ways. Steel absorbs impact through the controlled deformation of the guard itself. It is the choice for heavy traffic, large forklifts, and operations where an occasional impact is severe. When damaged, the guard is replaced, but the rack remains intact. High-density polyethylene, also known as HDPE, works elastically: it deforms upon impact and returns to its original shape. It does not require replacement after minor impacts and reduces noise in the warehouse. It works best in areas with medium traffic or when impacts are frequent but low-energy.

How they Reduce Accidents and Operating Costs

The safety argument is the most obvious: fewer direct impacts on the structure mean less risk of collapse, fewer downtime incidents, and fewer injuries to staff. But the financial calculation is usually what seals the deal. Replacing a damaged rack upright costs between three and eight times as much as the protector that would have prevented the damage. Added to that are costs that are rarely accounted for: the time to relocate the merchandise from the affected row, the interruption of the picking flow, the internal report, and, in serious cases, the structural inspection of the rest of the system. A single pallet drop due to partial collapse can equal the cost of protecting an entire aisle. Risks in warehouses with heavy forklift traffic are concentrated precisely in these areas and rarely give warning before they occur. Protectors also extend the rack’s service life. A well-protected system can withstand over a decade of use without deformation, even in 24/7 operation.

How to Choose the Right Protective Guard for Your Operation

Three questions guide the decision.

What type of forklift operates in each area? A conventional counterbalanced forklift impacts differently than a reach truck or a trilateral forklift. The protective guard must be sized for the weight and typical speed of the equipment operating in that area.

What is the traffic frequency in each aisle? Main aisles and the ends of rows account for most impacts. Starting there provides the best return on investment before covering the rest of the warehouse.

Are there pedestrians near the rack? If the answer is yes, protectors alone are not enough: pedestrian barriers and safety panels must also be installed. Structural protection and personal safety are separate issues that should be addressed in parallel.
